Dimensions (LxH):
Back wall (6mm): 400x300mm
Arena ( without back panel) : 300x146x300mm
Material:
Float glass
Color:
crystal clear
Contents:
1x wall ant arena - 30x15x30
4x rubber insert for drill holes as protection
4x washer for drill holes
4x plugs and screws
Connection:
ATTENTION 4x plugs/ grid inserts/ connectors (as required) for the side 50mm holes are not included in the scope of delivery
2x 50 mm hole at the bottom (hole center 4cm from the bottom edge)
2x 50 mm hole at the top (hole center 4cm from the top edge)
Description:

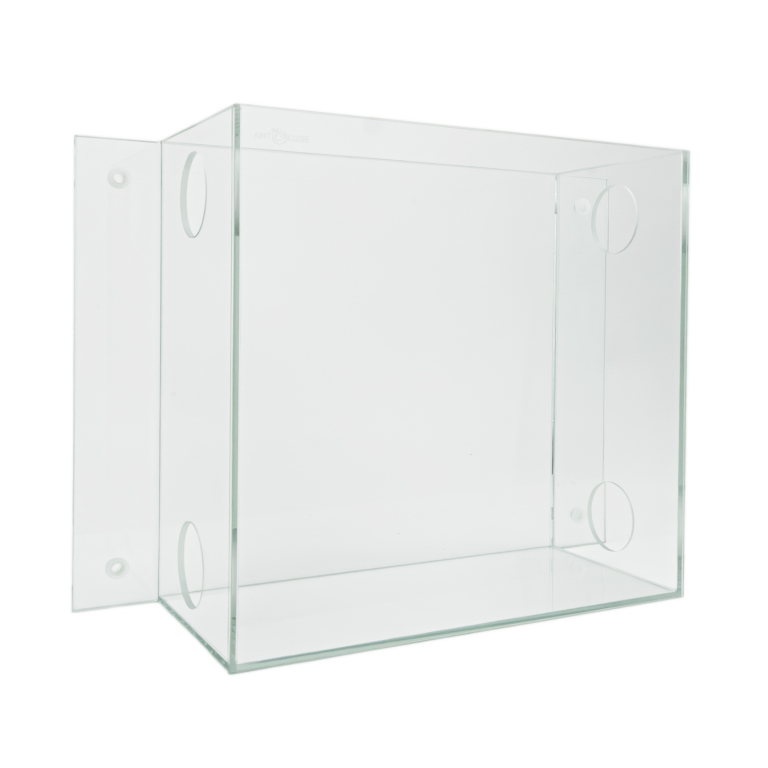

This ant arena has been developed for wall mounting and is easy to install on wooden and stone walls. Additional ant farms and arenas can be connected via the 50 mm holes on the side. Either a hose or transparent acrylic tube can be used as a connection. We also offer a wall ant farm to match the wall ant arena.
The matching articles Ant arena cover 30x15 and Ant arena frame 30x15 must be ordered separately.
Installation instructions:
Due to the glass panel as a rear wall, the wall underneath should be completely straight.
To fix the 4 dowels "S6" in the wall you need a drill with a 6mm drill bit (wood, stone or metal depending on the material).
Holes 40mm deep must be drilled into the wall in order to countersink the plugs with the 4x30mm screws.
Required for assembly:
- spirit level
- Adhesive tape to avoid having to mark on the wall below.
- Phillips screwdriver
- Drill/driver depending on the wall
- 6mm drill bit (wood, stone or metal depending on the surface)
- It is also helpful to make a template for the drill holes from a sheet of paper. Simply place it under the back wall and mark the holes.
Notes on production
The glass is cut to size according to DIN 1249 with a tolerance of +/- 1 mm. Additional escape protection is essential for extremely small ant species.
As our products are manufactured by hand, minimal deviations may occur despite the greatest care being taken
Note on the farm
Please note the following when attaching or removing hoses:
If the hose is very difficult to fit onto the connection socket, the socket should be lightly rubbed with a drop of our break-out protection oil or powder. The hose should then be pushed onto the socket using twisting or screwing movements without straining the socket with up and down movements. The same applies when removing the hoses from the farm connection socket. Please do not simply pull it off!
